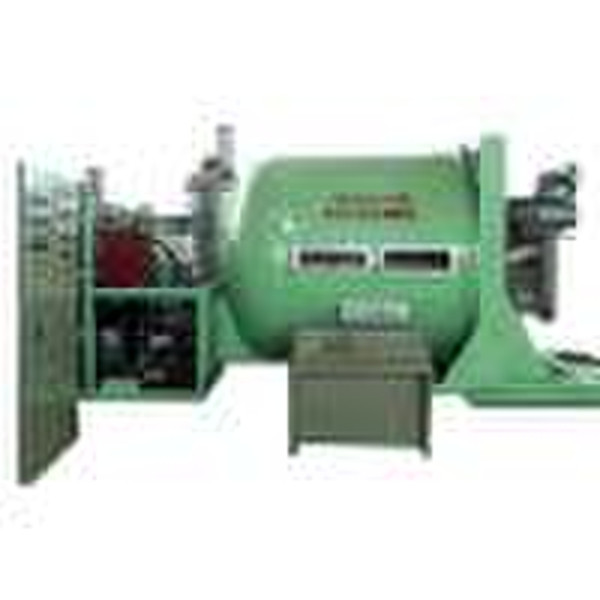

Rolling Film Coating Machine (SB1600)

Specifications:1) Aluminum metallizing of various types of film and paper including:a) PETb) BOPPc) PVCd) BOPETe) CPPf) PEg) Paper (45 GSM) 2) Thickness: 12 - 40 microns 3) Boats: 124) Roll width: 1400mm 5) Total power: 150 - 180kW 6) Size: 9 x 9 square meters 7) Roll outer diameter: 600mm8) Metallizing speed: 300m/ min 9) BOPP plastic film thickness: above 15μm 10) Up-room:a) Z630 oil pressure pumpb) ZJ-600 roots pumpc) H150 sliding valve pumpd) 2X-15 mechanical pump 11) Underground room:a) KT800 diffusion pumpb) ZJ-1200 roots pumpc) H150 sliding valve pumpd) 2X-15 mechanical pumpNot included:1) Air compressor2) Clear water pump
